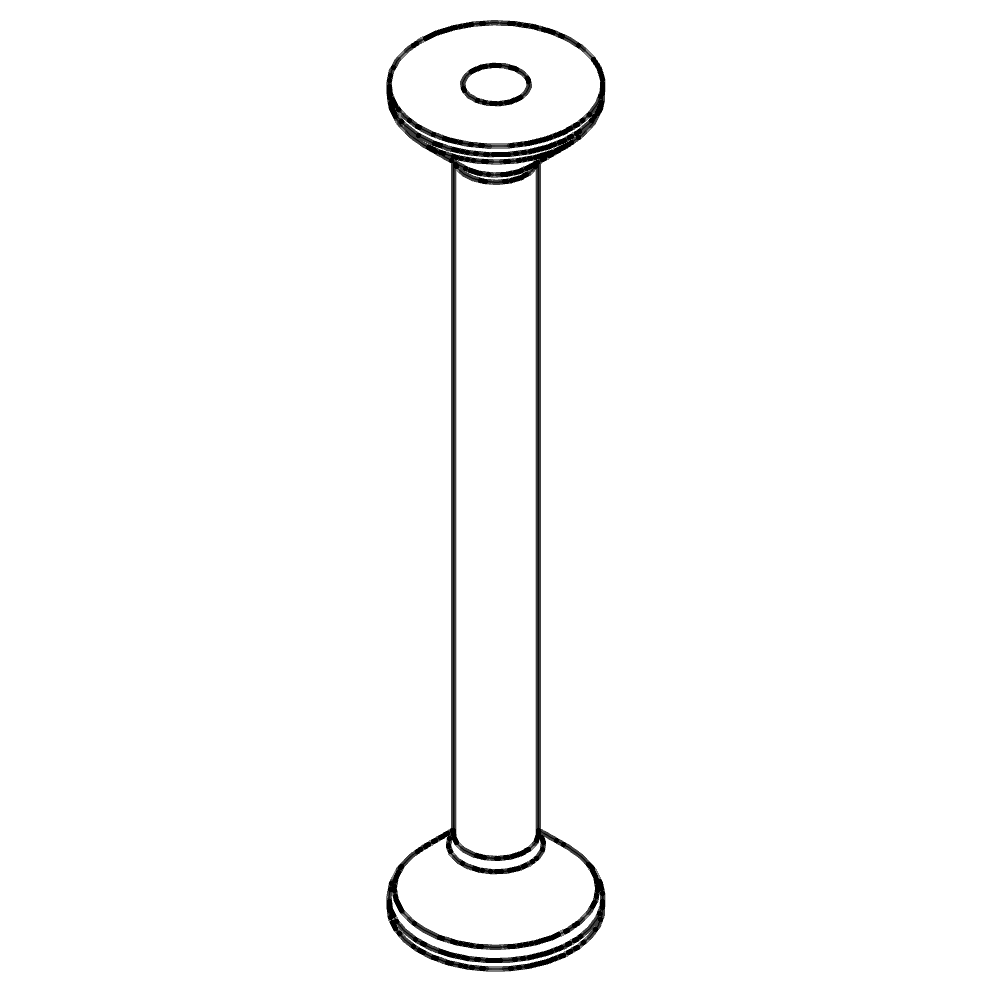

Print your Own - STL Boat Shuttle Bobbins

Complementary STL!

Have a 3D printer and prefer to print your own? These bobbins fit perfectly on the Warped by Weft boat shuttles and can also be used on standard boat shuttles from many other manufacturers.

Style variations are available to fit both diameters of bobbin winder (Ashford/narrow winder core vs. Schacht/wider winder core) so if you have a specific winder be sure you are choosing the right file to print.

Recommended Material: PLA or PETG

Small / 4 Inch equivalent: Fits the 10.75" Warped by Weft Boat Shuttle, bobbin measures 4 1/2" (114 mm) long x .95" (24 mm) diameter

Large / 6 Inch equivalent: Fits the 13" Warped by Weft Boat Shuttle, bobbin measures 6 11/16" (170mm) long x .95" (24 mm) diameter

These are designed to be printed without supports or assembly, but you may want to add a brim for stability when printing large bobbins.

Note: This STL file is licensed for Non-Commercial use only. That means you can print as many as you like for yourself, but you cannot sell items made from this file. If you are interested in a Commercial license please contact me for pricing.
